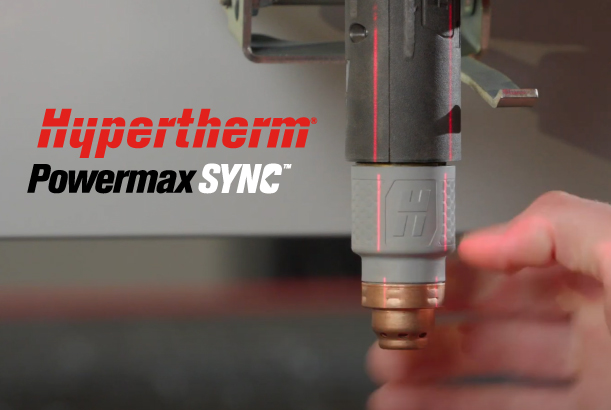

Hypertherm Powermax SYNC™
Change the way you work with the revolutionary Powermax SYNC™ series
Powermax SYNC™ series, the next generation of Powermax45/65/85/105 systems feature built-in intelligence and a revolutionary single-piece cartridge consumable!

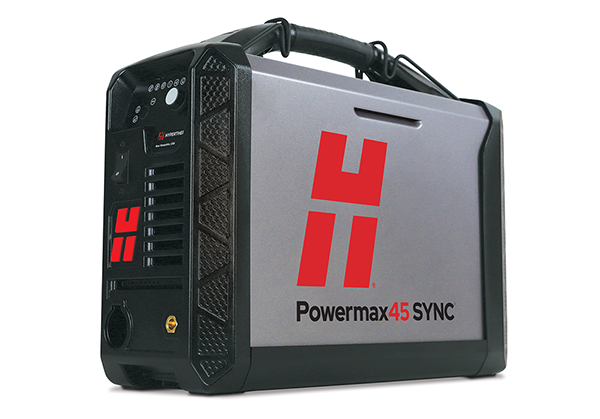

Powermax45 SYNC™
Powermax45 SYNC™ Technical Spec
Cut capacity
1/2” (12 mm) mild steel and stainless steel (10mm for aluminium)
Input voltage at 50/60 Hz
CSA 200-240 V, 1-PH
CSA 480 V, 3-PH
CE 230 V, 1-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50% 200-240 V, 1-PH
CSA 50% 480 V, 3-PH
CE 50% 230 V, 1-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
8 kW

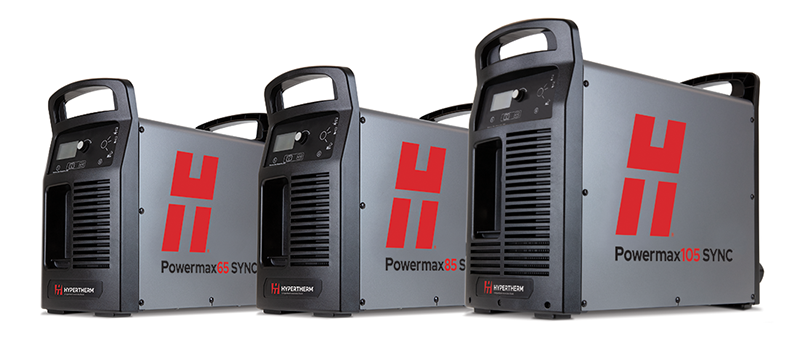

Powermax65/85/105 SYNC™
Powermax65 SYNC™ Technical Spec
Cut capacity
5/8” (16 mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 50%, 230-600 V, 1/3-PH
CE 50% 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
15 kW
Powermax85 SYNC™ Technical Spec
Cut capacity
3/4” (20mm)
Input voltage at 50/60 Hz
CSA 200-480 V, 1-PH
CSA 200-600 V, 1/3-PH
CE 400 V, 3-PH
Duty Cycle at full output2
CSA 60%, 239-600 V, 3-PH
CE 60%, 380/400 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
20 kW
Powermax105 SYNC™ Technical Spec
Cut capacity
7/8” (22 mm)
Input voltage at 50/60 Hz
CSA 200-600 V, 3-PH
CE 230-400 V, 3-PH
CE 400 V, 3-PH
CCC 380 V, 3-PH
Duty Cycle at full output2
CSA 80% 480-600 V, 3-PH
CE 80% 400 V, 3-PH
CCC 80% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
30 kW

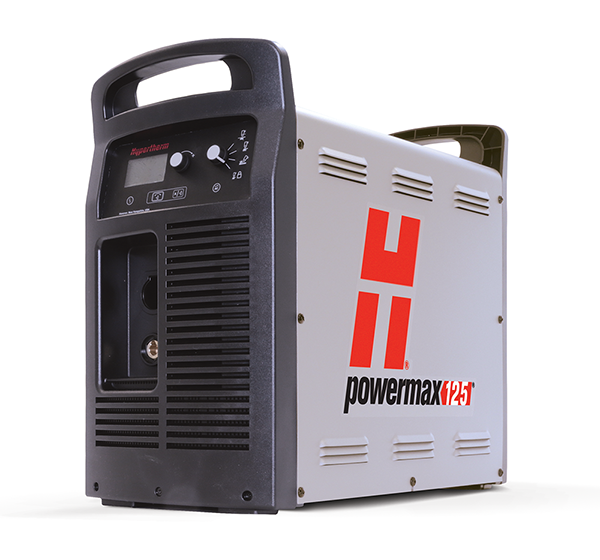

Powermax125 SYNC™
Delivering maximum power and performance for Hypertherm air plasma, the Powermax125 offers 100% duty cycle and 25mm (1”) pierce capability on mild steel. Combined with the Duramax Hyamp torch and consumables, this machine really is an air plasma powerhouse!
Powermax125 SYNC™ Technical Spec
Cut capacity
1” (25 mm)
Input voltage at 50/60 Hz
CSA 480 V, 3-PH
CSA 600 V, 3-PH
CSA 400 V, 3-PH
CSA 380 V, 3-PH
Duty Cycle at full output2
CSA 100% 480-600 V, 3-PH
CE 100% 400 V, 3-PH
CCC 100% 380 V, 3-PH
Gas
Air or nitrogen
Motor generator requirement for full arc stretch at full output
40 kW

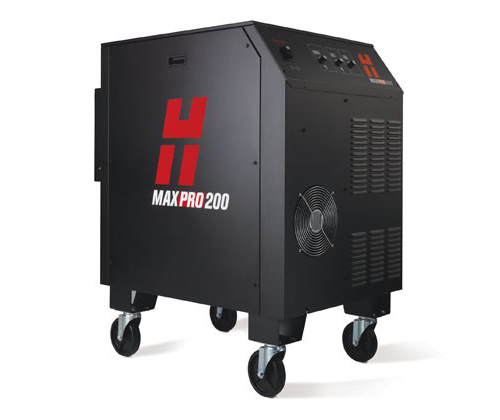

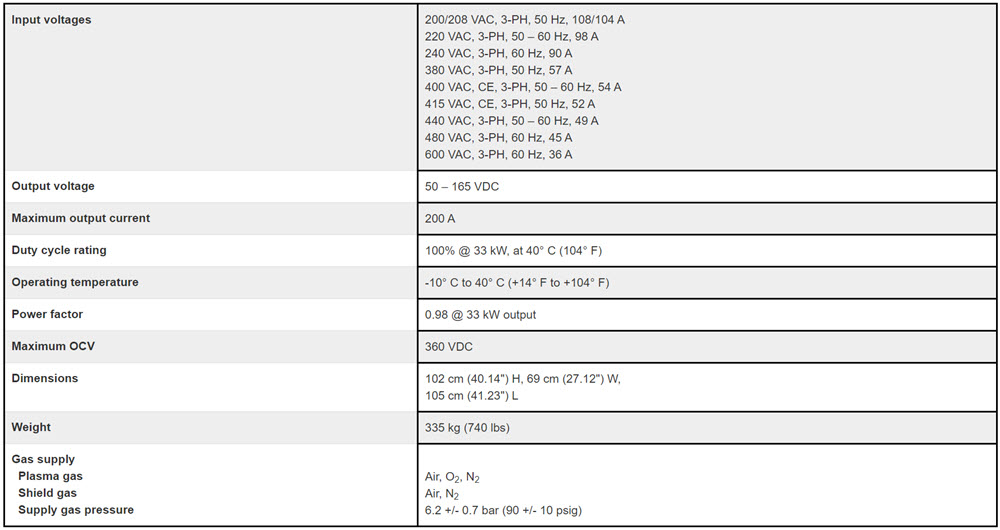

MAXPRO200
Engineered for heavy-duty, high-capacity automated cutting applications, the MAXPRO200 delivers repeatable performance with a 100% duty-cycle and a pierce capacity of 32mm (1 ¼”) on mild steel. The power source also benefits from mixed gas cutting which delivers improved edge finish, increased consumable life, and faster cut speeds.
