Swift-Jet Pro The benchmark in affordable, quality waterjet cutting
Cuts almost anything from granite to glass

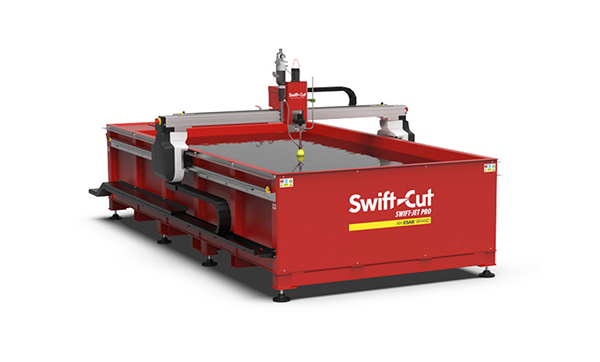

Swift-Jet Pro Range

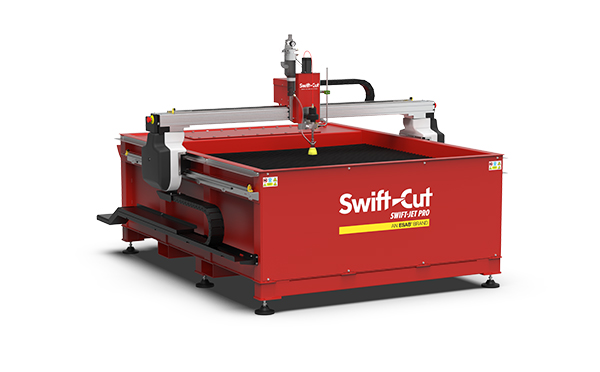

SJP 1500
1500mm x 1500mm
5′ x 5′
SJP 3000
3000mm x 1500mm
10′ x 5′
Technical specification

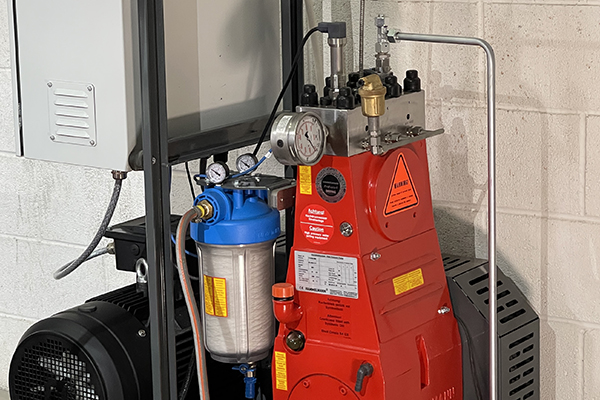

Hammelmann direct drive pump
The quality of the German designed and built Hammelmann high pressure pump is indisputable. 30% more energy efficient than other waterjet systems, and much longer service intervals to match

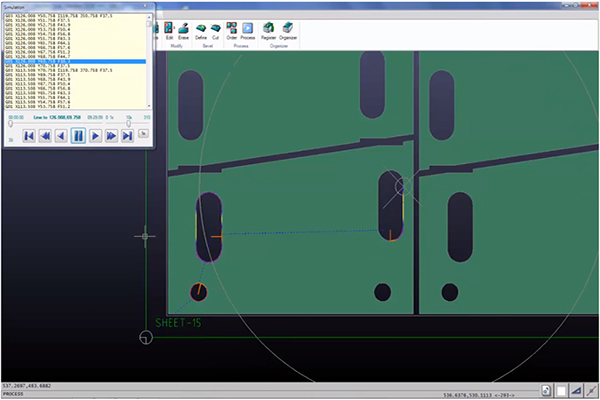

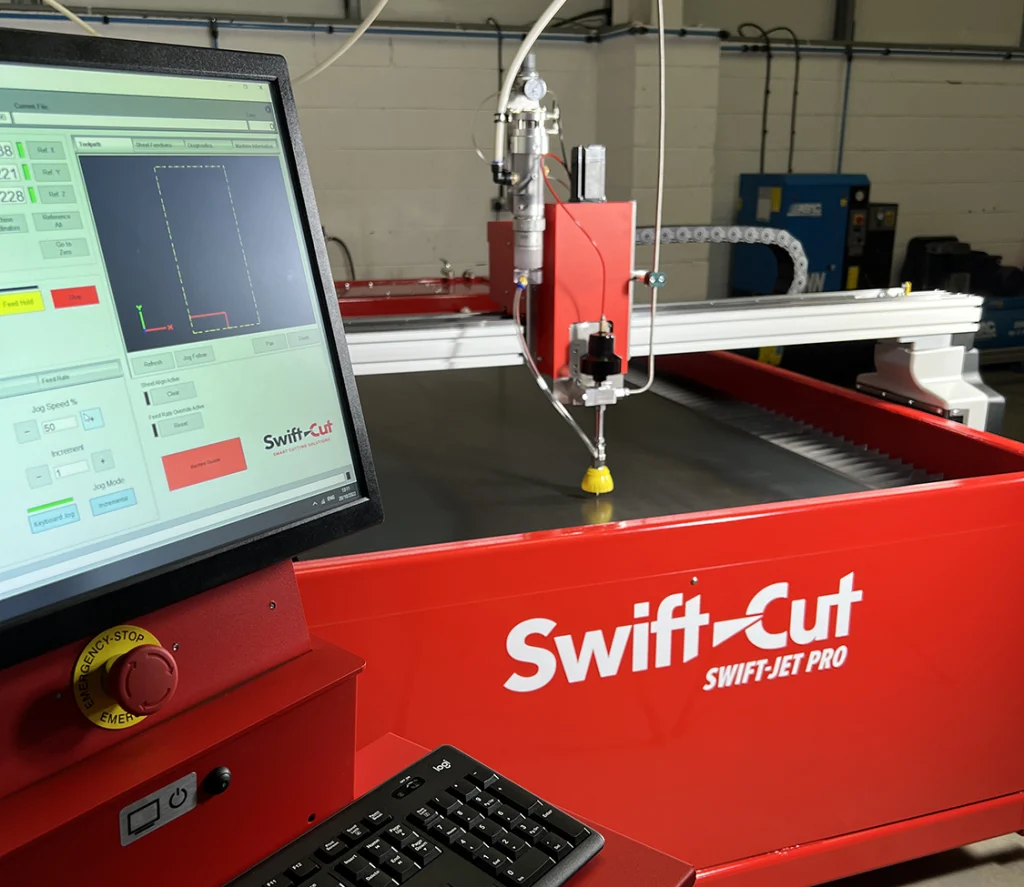

IGEMS and SwiftCNC
Market leading software combined to produce the perfect partnership for powerful waterjet programming control

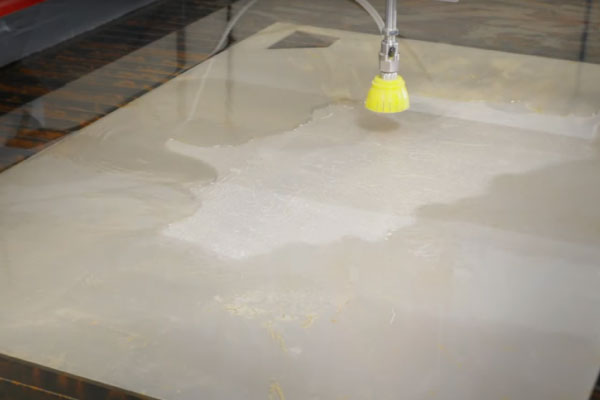

Underwater cutting system
Submerse your cutting material with ease which means less noise and less mess. Water level can be raised and lowered by up to 60mm (2.3”)

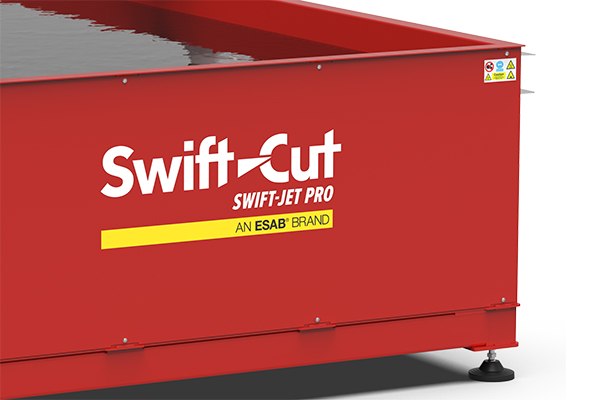

Fully welded tank
Single piece heavy-duty fully welded tank design with durable paint finish

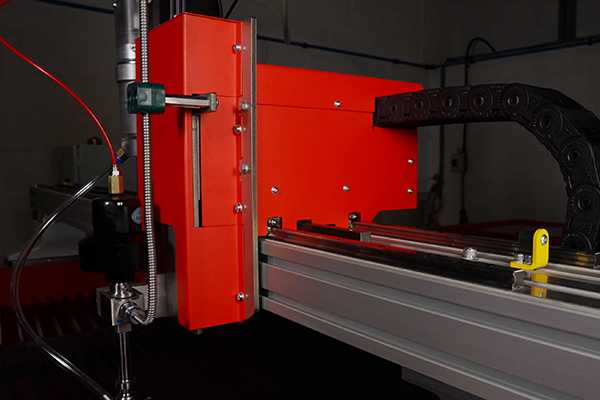

Sealed linear bearings
Triple sealed linear bearings with scrapers on X and Y axis protect against moisture and cutting particulate ingress

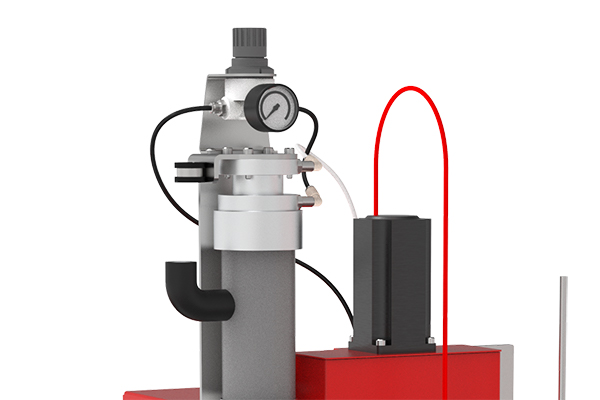

Abrasive regulator
A mini hopper with abrasive metering system regulates the flow of garnet into the nozzle, improving flow consistency and reducing the likelihood of blockages caused by surges and fluctuations in the garnet feed
All technical information and more is now available in our brochures.
To get access to all of our documentation you will need to complete this form.
Powermax45 SYNC™ – Cut up to 12mm
Powermax65 SYNC™ – Cut up to 16mm
Powermax85 SYNC™ – Cut up to 20mm
Powermax105 SYNC™ – Cut up to 22mm
Powermax125 SYNC™ – Cut up to 25mm
ESAB A120 – Cut up to 20mm
Download Brochures
Swift-Cut is the world’s first light industrial CNC OEM to fully test and integrate the new Hypertherm Powermax SYNC™ plasma systems with our cutting machines and software
Our tech specs are now available in our brochures.
Please complete this short form to gain full access
Get in touch
Take control of your cutting with a Swift-Cut CNC machine
Fill the form below and one of our team will be in touch.
The benchmark in affordable, quality waterjet cutting
It cuts virtually anything!

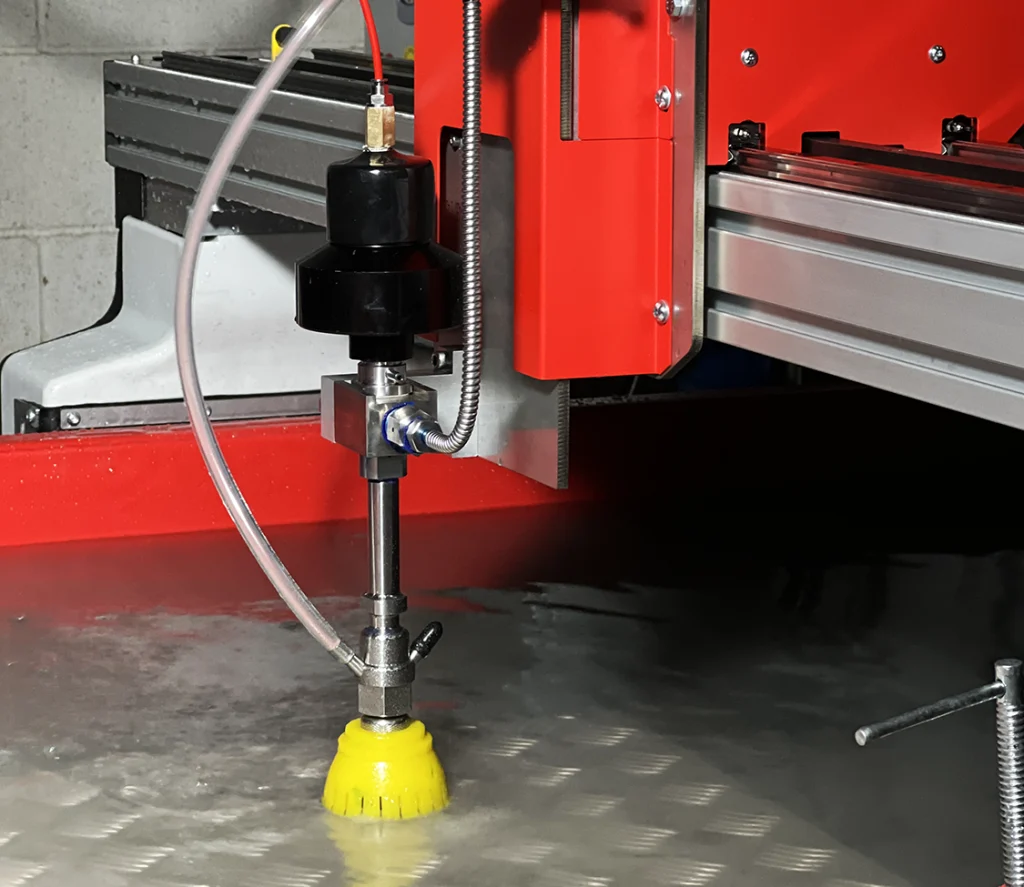

The Swift-Jet Pro is one of the most versatile CNC cutting machines available today. From glass to granite, rubber to resin, and steel to stone, this machine cuts through it all. Using a combination of highly pressurised water, mixed with abrasive (garnet), the resulting focused beam of water makes light work of even the toughest materials. Smooth edge finish, no heat affected zone and little to no post processing.
Affordable, smart cutting
Undisputedly Swift-Cut, the Swift-Jet Pro is bringing the incredible capabilities of waterjet cutting to the masses – a table that has combined high-quality software with our robust, precision engineered table build, and made it affordable. Coupled together with an energy efficient, long service life, high pressure pump, ensures lower running costs and a faster ROI compared to other waterjet systems.

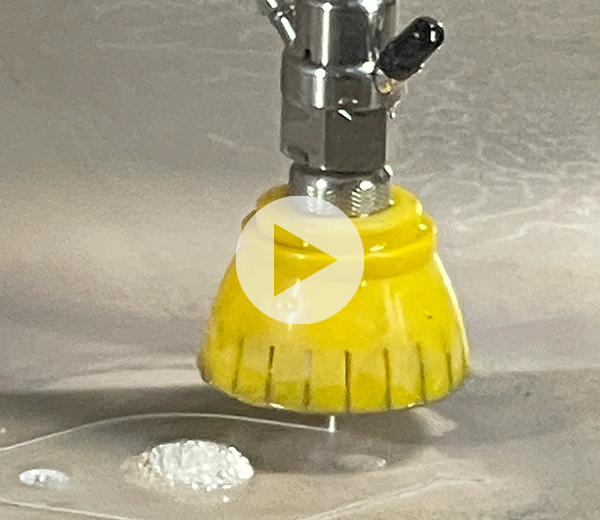

See it in action
“Nothing else comes close in terms of price, features, and support”.
We have dedicated experience centres in many locations around the world. We can also carry out personalised remote demonstrations over Zoom, TeamViewer, Microsoft Teams and WhatsApp platforms. You can send-in or bring parts or drawings with you to cut out, or we can create something for you which best represents your particular application.
Take control of your cutting with a Swift-Cut CNC machine
Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.
- Easy to use & Affordable
- Heavy-duty design & Proven reliability
- Fantastic support
- Superb cut quality
- Quick setup & Feature rich
Swift-Jet Pro Range Sizes
SJP 1500
1500mm x 1500mm
5′ x 5′
SJP 3000
3000mm x 1500mm
10′ x 5′
Benefits of a Swift-Jet Pro
There’s lots of reasons why the Swift-Jet Pro is the worlds best selling CNC plasma cutting machine. Here, we’ve summarised the top 12!
- Full online support worldwide
- Cut metal up to 50mm thick and low density materials up to 100mm thick
- End the reliance on your suppliers for cut parts
- Standalone operators console
- Cut virtually any material!
- IGEMS software included as standard
- Underwater cutting system
- High/low pressure cutting
- Lower running costs than intensifier pumps
- Triple sealed linear bearings
- Fully welded single piece tank design
- Longer service intervals than intensifier pumps
Providing you with the best support in the business
We have outstanding feedback
“Nothing else comes close in terms of price, features, and support”
Charlie Insley
Burton Rubber
Michael Palmer
CDC Designs
Glen Lawhon
Lawhon Welding
Take control of your cutting with a Swift-Cut CNC machine
Whether you’re ready to buy, would like a demonstration in our customer experience centre, or just have some questions regarding our machines or software, please feel free to leave an enquiry and one of our team will be in touch.
- Easy to use & Affordable
- Heavy-duty design & Proven reliability
- Fantastic support
- Superb cut quality
- Quick setup & Feature rich
Technical specification
Hammelmann direct drive pump
The quality of the German designed and built Hammelmann high pressure pump is indisputable. 30% more energy efficient than other waterjet systems, and much longer service intervals to match
IGEMS and SwiftCNC
Market leading software combined to produce the perfect partnership for powerful waterjet programming control
Underwater cutting system
Submerse your cutting material with ease which means less noise and less mess. Water level can be raised and lowered by up to 60mm (2.3”)
Fully welded tank
Single piece heavy-duty fully welded tank design with durable paint finish
Sealed linear bearings
Triple sealed linear bearings with scrapers on X and Y axis protect against moisture and cutting particulate ingress
Abrasive regulator
A mini hopper with abrasive metering system regulates the flow of garnet into the nozzle, improving flow consistency and reducing the likelihood of blockages caused by surges and fluctuations in the garnet feed
All technical information and more is now available in our brochures.
To get access to all of our documentation you will need to complete this form.
Powermax45 SYNC™ – Cut up to 12mm
Powermax65 SYNC™ – Cut up to 16mm
Powermax85 SYNC™ – Cut up to 20mm
Powermax105 SYNC™ – Cut up to 22mm
Powermax125 SYNC™ – Cut up to 25mm
ESAB A120 – Cut up to 20mm
Download Brochures
Swift-Cut is the world’s first light industrial CNC OEM to fully test and integrate the new Hypertherm Powermax SYNC™ plasma systems with our cutting machines and software
Our tech specs are now available in our brochures.
Please complete this short form to gain full access

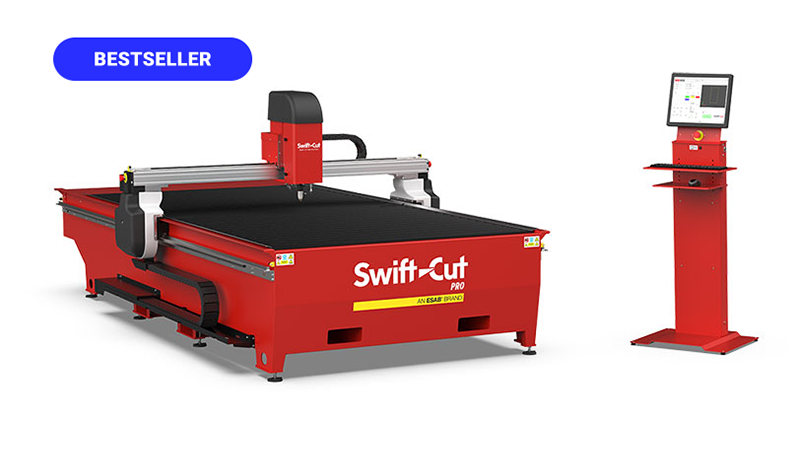

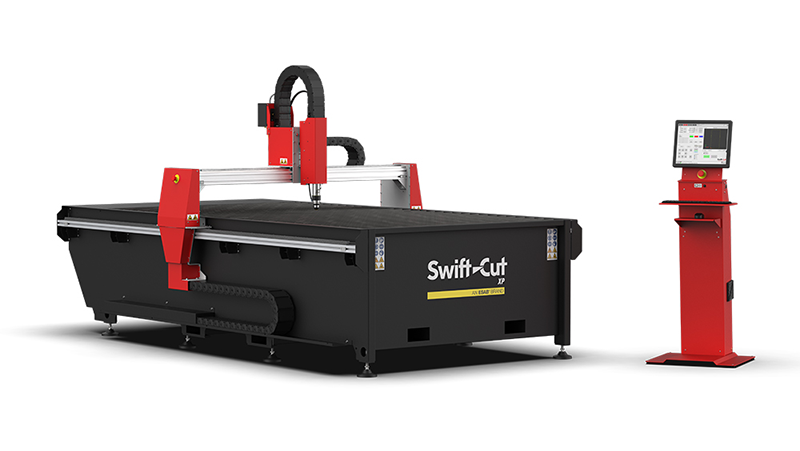

See other Swift-Cut products
A collection of cutting-edge CNC plasma and waterjet cutting machines. Whether you want to plasma cut 0.7mm galvanised mild steel, or waterjet 100mm expanded foam, we have the CNC cutting machine for you.
FAQ’s
Can I literally cut any material?
The Swift-Jet Pro will cut virtually any material you put in front of it. The few exceptions being diamond, tempered glass, brittle plastics, and certain ceramics and composites. If in doubt, we will try to cut through it. Put us to the test!
What do I need to run one?
Our Swift-Jet Pro waterjet requires an electricity supply, a water supply and a compressed air supply in order to run. The table (inc. console) requires a single phase 110v-230v (6A-4A) electricity supply. The Hammelmann high pressure pump requires a three phase 380v-480v (40A-30A) electricity supply, and standard tap pressure water supply. The compressed air supply will need to be clean and free of moisture, oil, and any other contaminants. The compressor will need to deliver 17CFM of air flow and have a holding pressure of 7.5bar (110psi)
How fast is waterjet?
Like all cutting processes, speed is determined by the type and thickness of material being cut, the power of the machine, and the quality of cut required. The Swift-Jet Pro machine can cut at speeds up to 10m/min (390ipm) for soft materials like foam, however 25mm (1”) thick granite will cut at 20mm/min (3/4”/min).
What do you mean when you talk about abrasive cutting?
Abrasive cutting basically means cutting with a mixture of water and abrasive garnet material. The garnet is what allows the high-pressure water stream to cut through dense materials and it is introduced into the water stream just above the cutting nozzle before being directed down onto the sheet material. The garnet is readily available and is classed as a consumable item so once it’s been used to cut through the sheet material, it enters the water tank where it settles to the bottom and is manually removed once it reaches a certain level.
